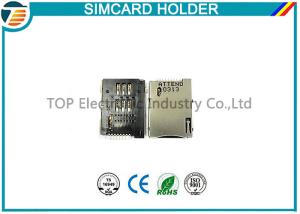

Gold ATTEND SIM CARD Socket SIM Card Holder 115A-ADA0-R02
andnbsp;
andnbsp;
Brand : Attend
ATTEND part number: 115A-ADA0-R02
TOP part number: TOP-SIM03
andnbsp;
andnbsp;
Material:
Housing: LCP+30% GF, UL 94V-0 RATED,
Color: black
Contacts: copper alloy
Shield cover: sus304 , 0.2T
pitch: 1.27mmandnbsp;
Height above the board: 1.8mm
andnbsp;
Plating:
Contact area: head cold plating over 1.27um (50um) MIN, nickel under plating
Soldering zone: 3.05 um(120um) min, 100% TIN, or lead-free plating
shield cover: gold flash nickel under plating
under plating: 1.27um (50um)min nickel allover
cutting burr allowed: 0.03mm MAX.
THE DIMENSIONS MARKED WITH andldquo;IIandrdquo; are critical dimensions.
Co planarity andnbsp;is 0.10mm MAX.
RoHS compliant products.
andnbsp;
andnbsp;
andnbsp;
Specification:
andnbsp;
| Insulator Material | L.C.P.+30% Glass Filled,UL94V-0 |
| Color: | Black |
| Name | SIM Card Socket Push-Push Type for 6Pin |
| Contact Area Plated | 10uandquot; Gold Plated Over 50andquot; Nickel |
| Pitch | 1.27mm |
| Height above the board | 1.8mm |
| Solder Area Plated | 100uandquot; Tin Plated Over 50uandquot; Nickel |
| Current Rating | 0.5A AC/DC Max. |
| Insulation Resistance | 1000 M ohm Min initial. |
| Dielectric Withstanding Voltage | 500V for 1 minute |
| Insertion Cycles | 10,000 Cycles Min |
andnbsp;
andnbsp;
Feature:
Electrical
- Current rating: 0.5A per pin
- Voltage rating: 30v AC/DC
- Contact resistance: 30mandOmega;
- Insulation resistance : 1000MandOmega;
- Withstanding voltage: 500 VAC
andnbsp;
Mechanical
- Durability: 5000 cycle
andnbsp;
Environmental
andnbsp; andnbsp; andnbsp; 1. Operating temperature range: -40anddeg;C ~ +85anddeg;C
andnbsp; andnbsp; andnbsp; 2. Storage temperature range: -40anddeg;C ~ +85anddeg;C
andnbsp; andnbsp; andnbsp; 3. Solder ability: recommended IR reflow temperature: 260anddeg;C 10Sec.
All materials are RoHS compliance
andnbsp;
andnbsp;
Application:
landnbsp; GSM APPLICATIONS
landnbsp; POINT OF SALE TERMINALS
landnbsp; PERSONAL SMART CARD DEVICES
landnbsp; MOBILE PHONES
andnbsp;
andnbsp;
Drawing:
andnbsp;
andnbsp;
andnbsp;

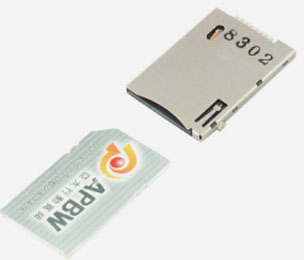

Product show:
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
We can also supply many other types of SIM Card holders,andnbsp;with good quality and cheaper price, pleaseandnbsp;contactandnbsp;our sales team for more information.
sales@topelecind.com
skype ID: natasha.cn
andnbsp;
andnbsp;
andnbsp;
Ourandnbsp; Offer :
---Powerful Randamp;D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
andnbsp;
FAQ
andnbsp;1. Whatand#39;s the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
andnbsp;
2. andnbsp;How about the defective rateandnbsp;?
Answer: Less than 1%.
andnbsp;andnbsp;
andnbsp;3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
